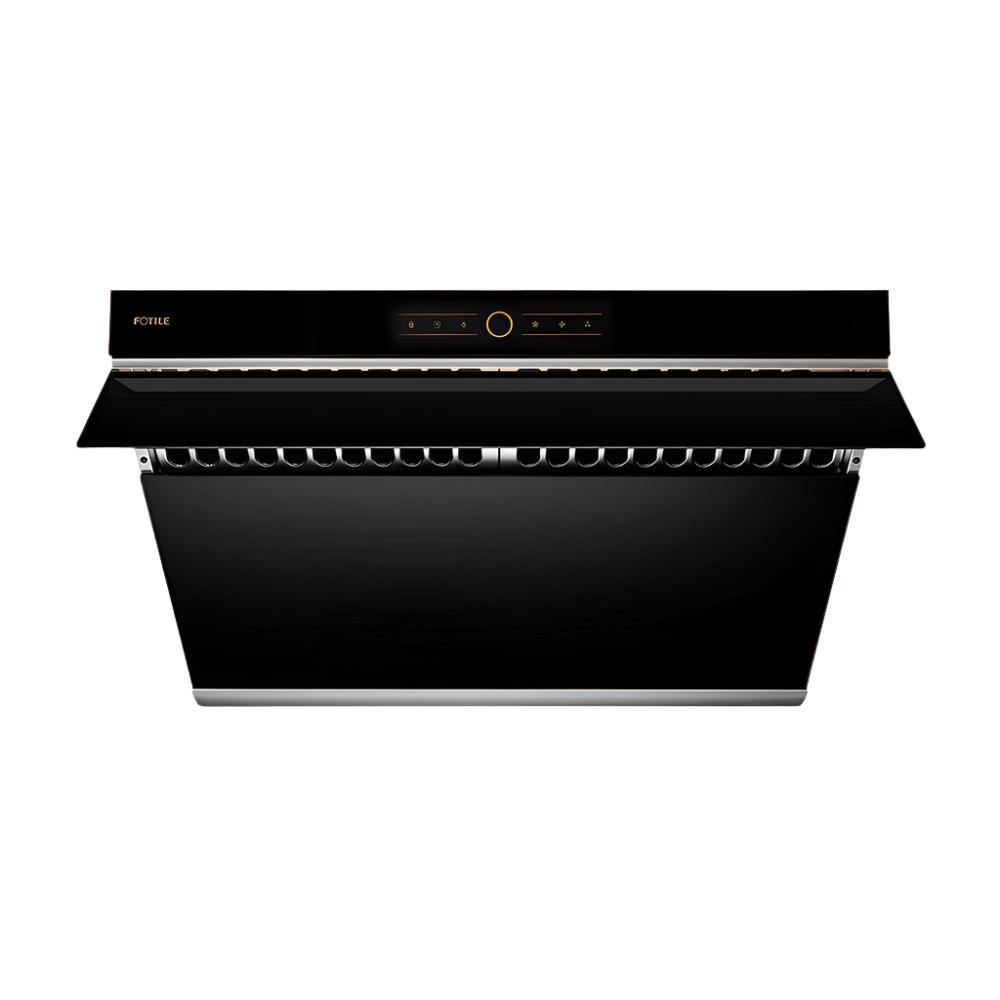

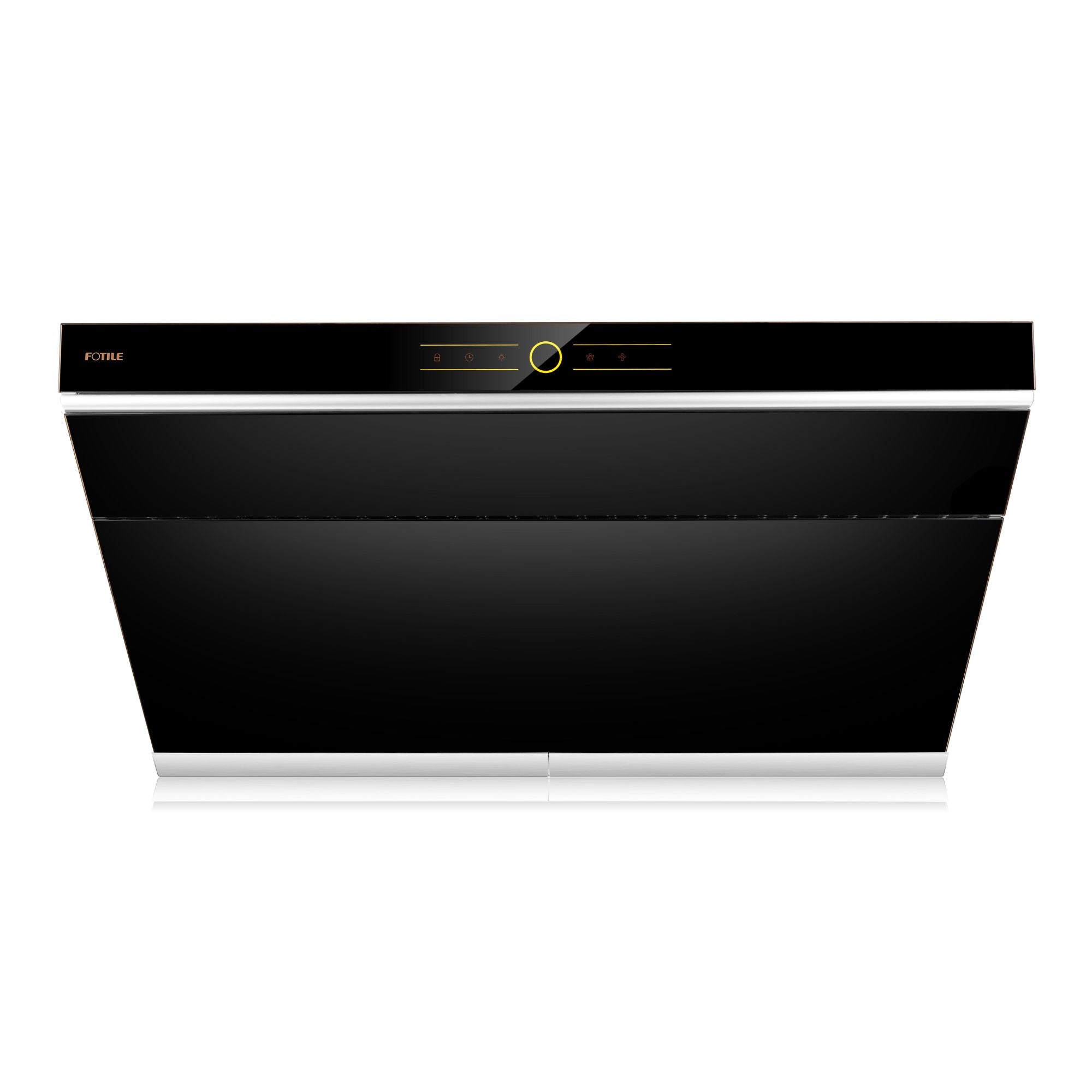

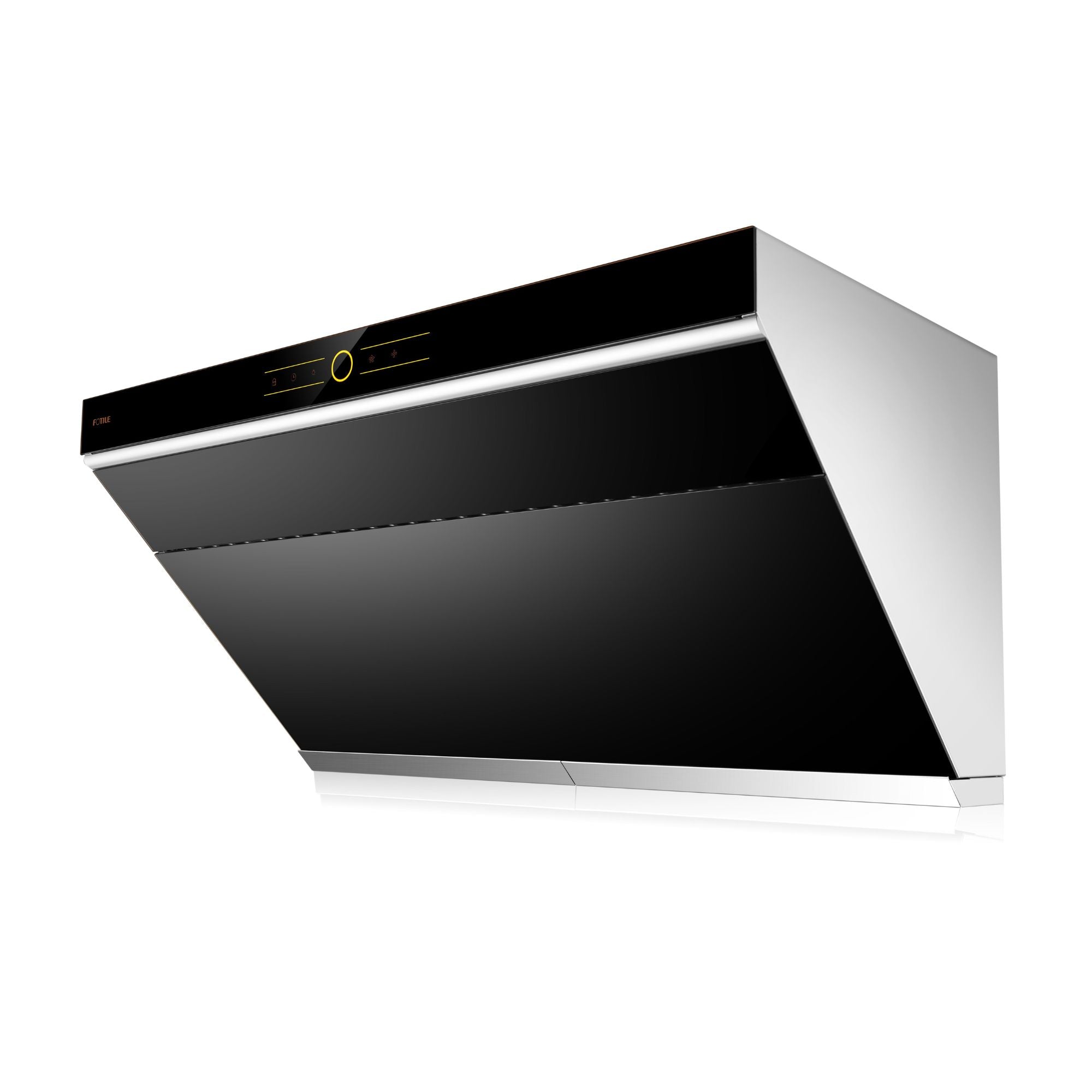

Fotile Slant Vent Series 30 in. 850 CFM Wall Mount Range Hood with Touchscreen | JQG7501

FOTILE Slant Vent Series, 30 In. wall mount/under-cabinet side-draft design range hood with 850 CFM, provides excellent performance and looks great. When the unit is powered on, an automatic open baffle plate will open to a 90-degree angle, capturing smoke and fumes before they escape. A large 6sf coverage area easily covers up to 5 burners on your cooktop, guiding smoke upwards and creating a barrier to prevent you from breathing in harmful smoke and grease.

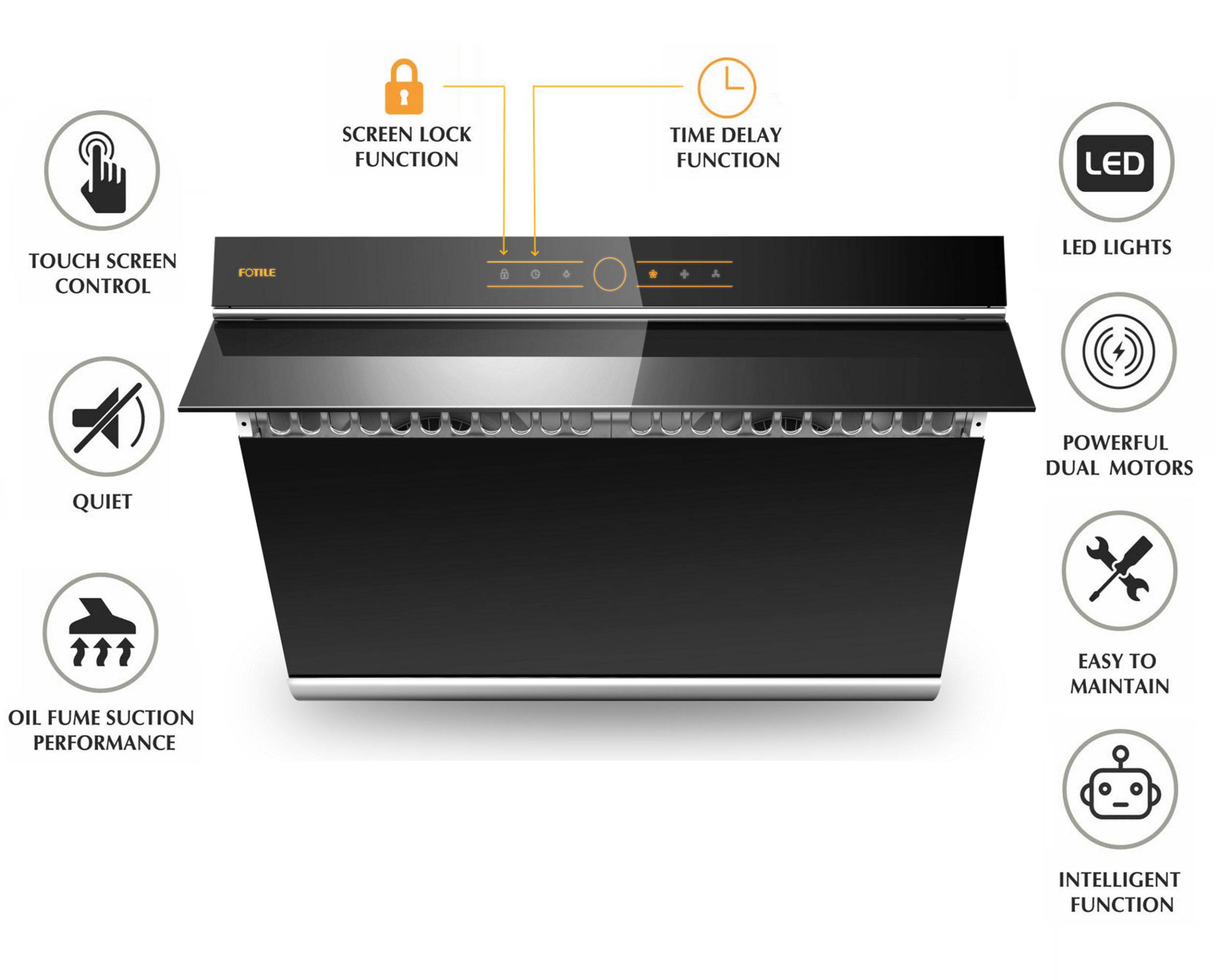

The JQG7501 is capable of normally producing 530 CFMs, with the WhisPower motor Technology and Capture-Shield extraction, it can achieve a maximum power of 850 CFM and lowest noise level 39dB. An elegant Touch Screen control panel with a delay function that lets the hood work for 2 minutes after you are done cooking to ensure all the smoke and odors are removed from your kitchen. A screen lock function also prevents the unit from malfunctioning while you are cleaning the unit. Color Onyx Black

Features

• 90-degree Automatic Open/Close Fume Baffle Plate prevents the smoke from spreading in your kitchen and protects you against harm.
• 30-inch Extra-wide Fume Inlet ensures even suction pressure at every angle.
• 6 sq. Ft. Super-large Coverage Area easily covers all the burners on your cooktop.
• Due to our WhisPower Technology, FOTILE can capture a higher CFM than published by achieving the Venturi effect created with our Capture Shield Technology. Airspeed and power are increased as we capture smoke and grease in the Golden Collection Zone and pass it through our centrifugal
  WhisPower motors.
• Double Centrifugal Fans ensures strong power and fluent extraction.
• Super Quiet Operation, the Lowest speed has a 39dB noise level; Mid speed has 49dB; High speed has 54dB
• A Delay Function lets the Range Hood work for several minutes after cooking to remove all the smoke and odor from your kitchen.
• Screen Lock Function. It allows you to clean your Range Hood without accidentally turning it on.

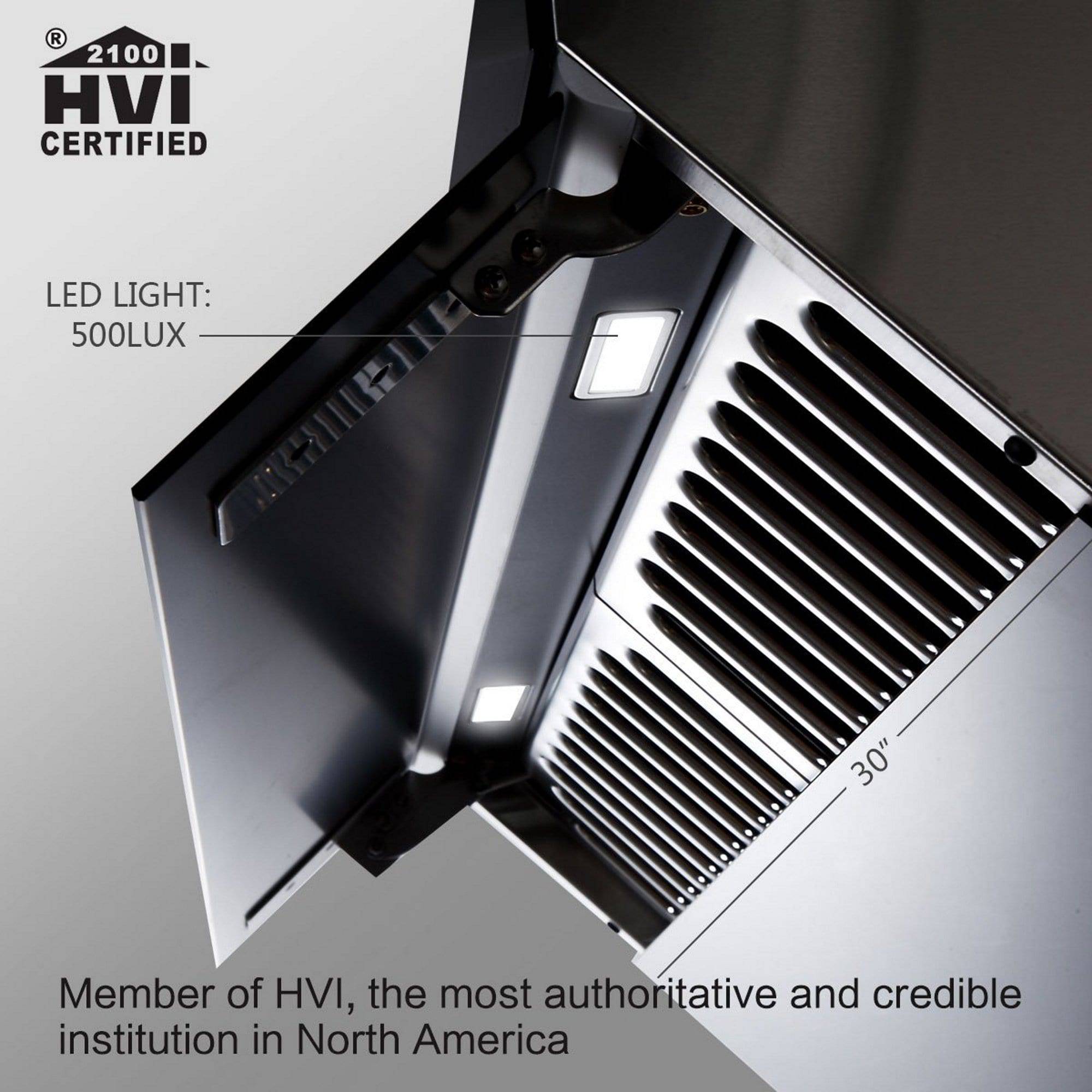

• Powerful Lights illuminate the whole cooking area and help you see the color of the food you are cooking.
• A large Grease Tray with more volume decreases the frequency of cleaning.
• Folding Oil Filter is dishwasher safe.

Specifications

• Brand: Fotile
• Origin Country: China

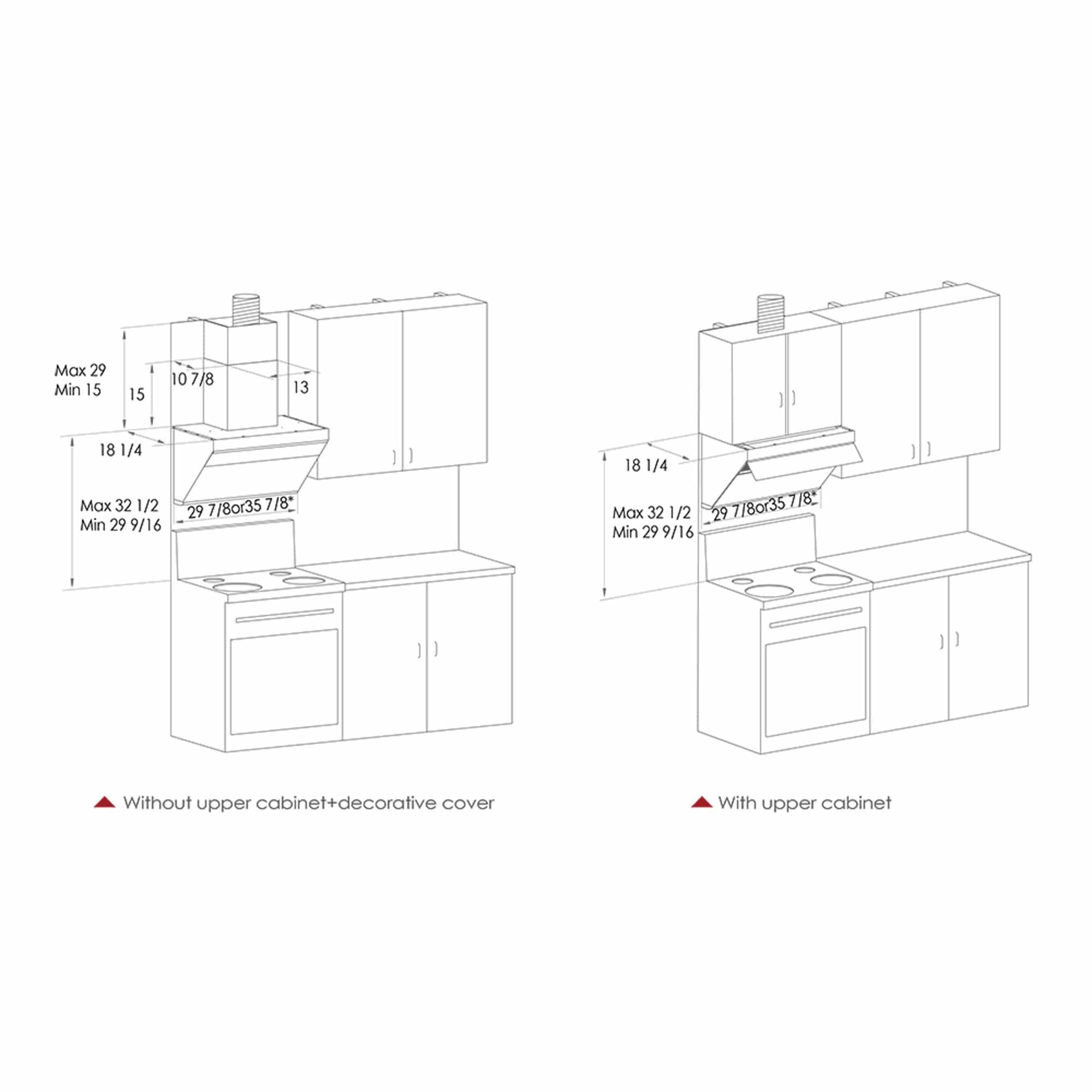

• Mount Type: Wall mount or under cabinet
• Airflow (Q/L/M/H): 380 / 650 / 850 CFM

• Noise Level:  39 / 49 / 54 Decibels

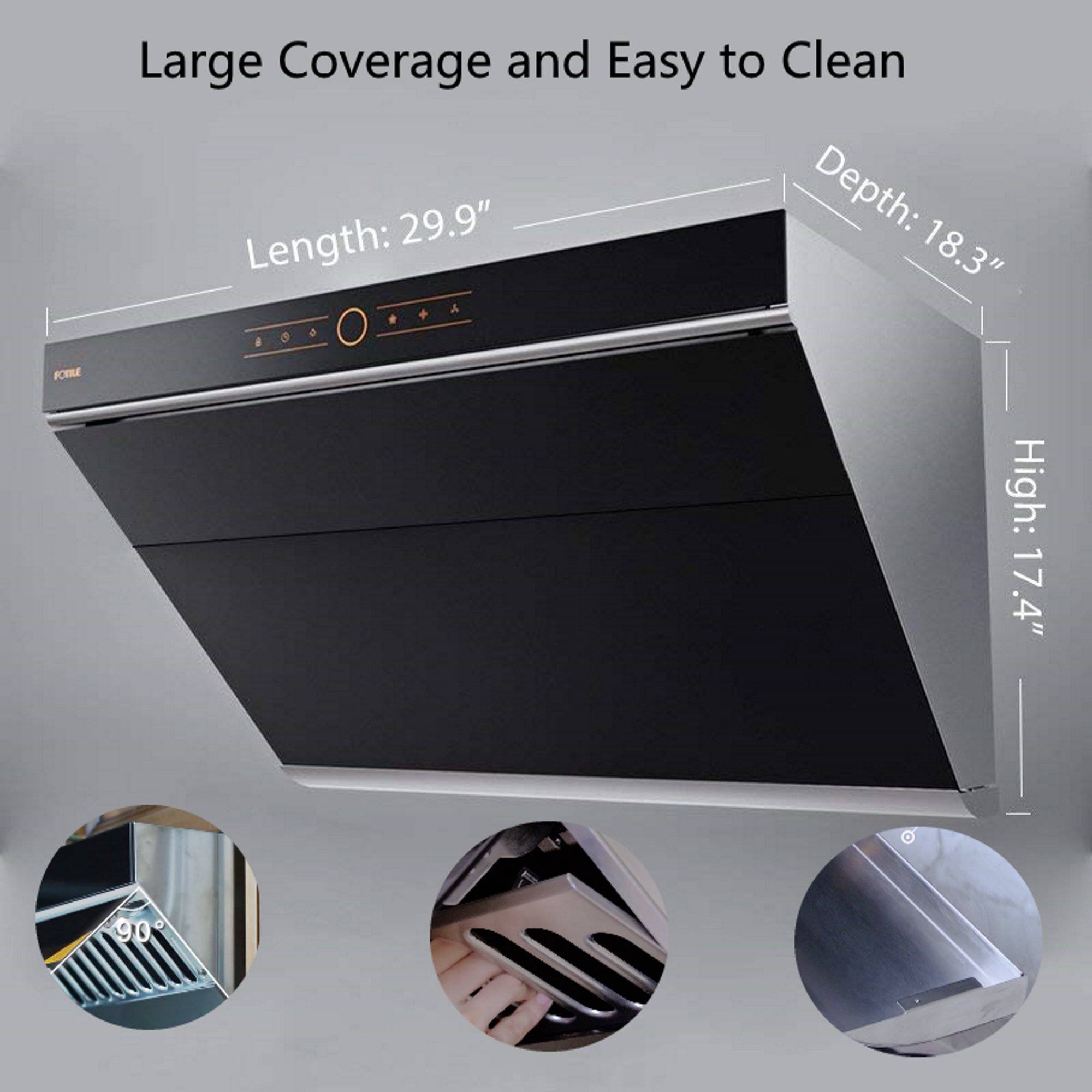

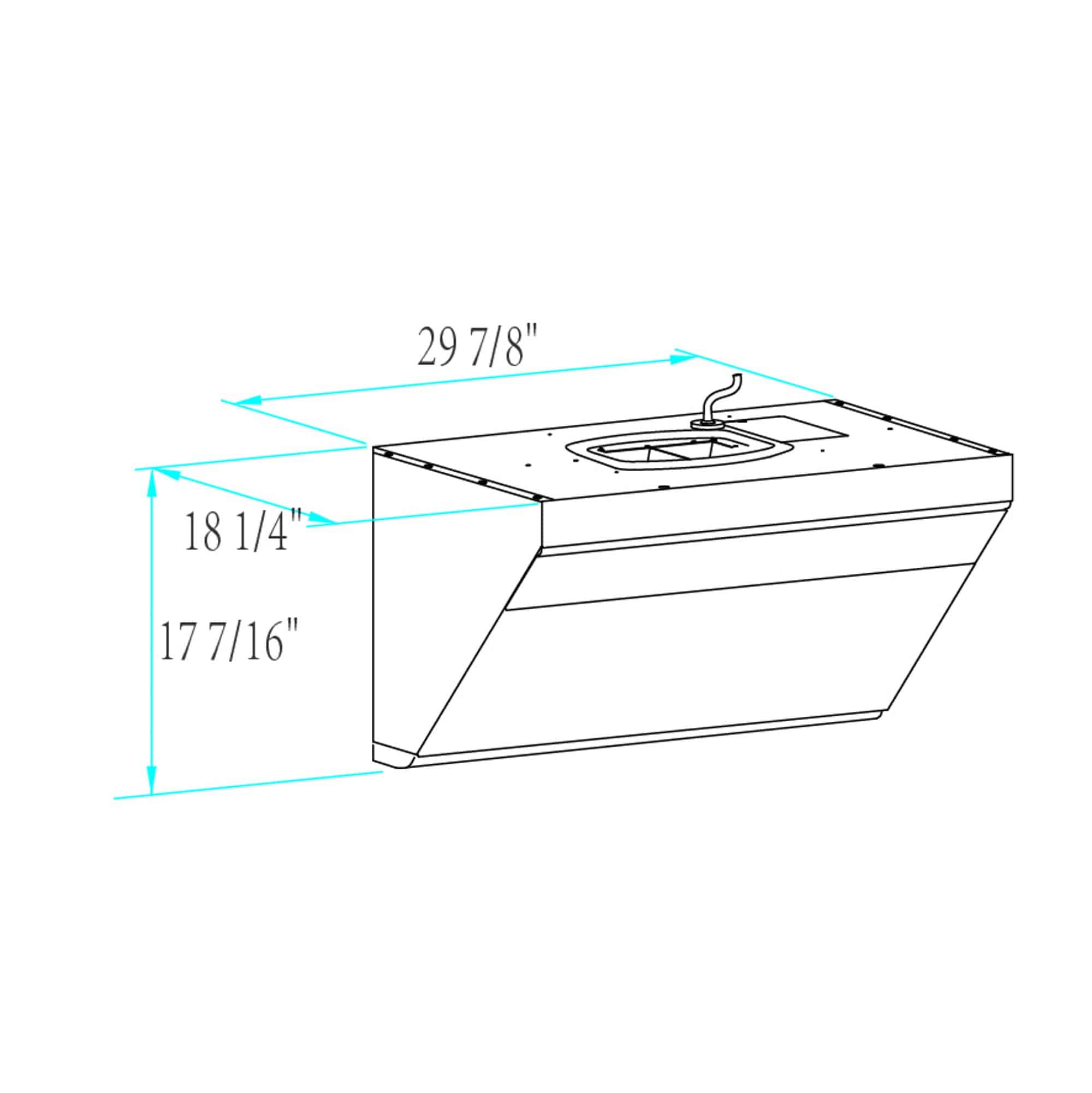

• Dimensions
  • Width: 29.9 in.
  • Depth: 18.3 in.
  • Height: 17.4 in.
• Power Rating: 120 V / 60 Hz
• Finish: Tempered Glass, Stainless Steel
• Lighting: 2 LED Lights

• Control Type: Touchscreen

• Speeds: 3 Speeds
• Duct Size: 6-inch round duct
• Motor Size: 850 CFM
• Warranty: Labor: 2 Years | Parts: 5 Years(Limited) | Motors: Lifetime Limited Warranty

Manuals

User Manual Brochure Spec Sheet

Manufacturer Warranty

**2-year full warranty**

This Warranty covers the Fotile Range Hood Product (the "Product") and each of its component parts (the "Parts") against defects in workmanship and materials.
This two-year full warranty will also cover the service and shipping fees for repairing or replacing Products or Parts.

**3-year limited warranty**

This Limited Warranty covers each component parts (the "Parts") of the Fotile Range Hood Product (the "Product") and is against defects in workmanship and materials only. The service and shipping fees for repair or replacement of the Parts will not be covered under this Limited Warranty.

**Lifetime motor limited warranty**

Fotile will repair or replace (at its sole discretion, either new or reconditioned motor part) the range hood motor if any defects in workmanship and materials arise in the range hood motor. However, the service and shipping fees for repair or replacement of the range hood motor part will not be covered after the Full Warranty period expires.

The warranty applies to the original owner and is non-transferable. To activate it, register your warranty within 90 days of delivery.

Warranty Policy Warranty Registration

Shipping-Return Policy

Shipping Times: 5-10 business days

FOTILE offers a 30-day return policy from the date of product delivery. All returns are subject to a 15% restocking fee ($50 minimum) plus shipping fees. Installed, damaged, used, and refurbished items are not eligible for returns.

Shipping Damage: If the product is damaged, take photos of the damage and keep it in its original packaging. Then, contact us at support@ovenelitehq.com with your photos, order number, receipt, and description of the damage.
