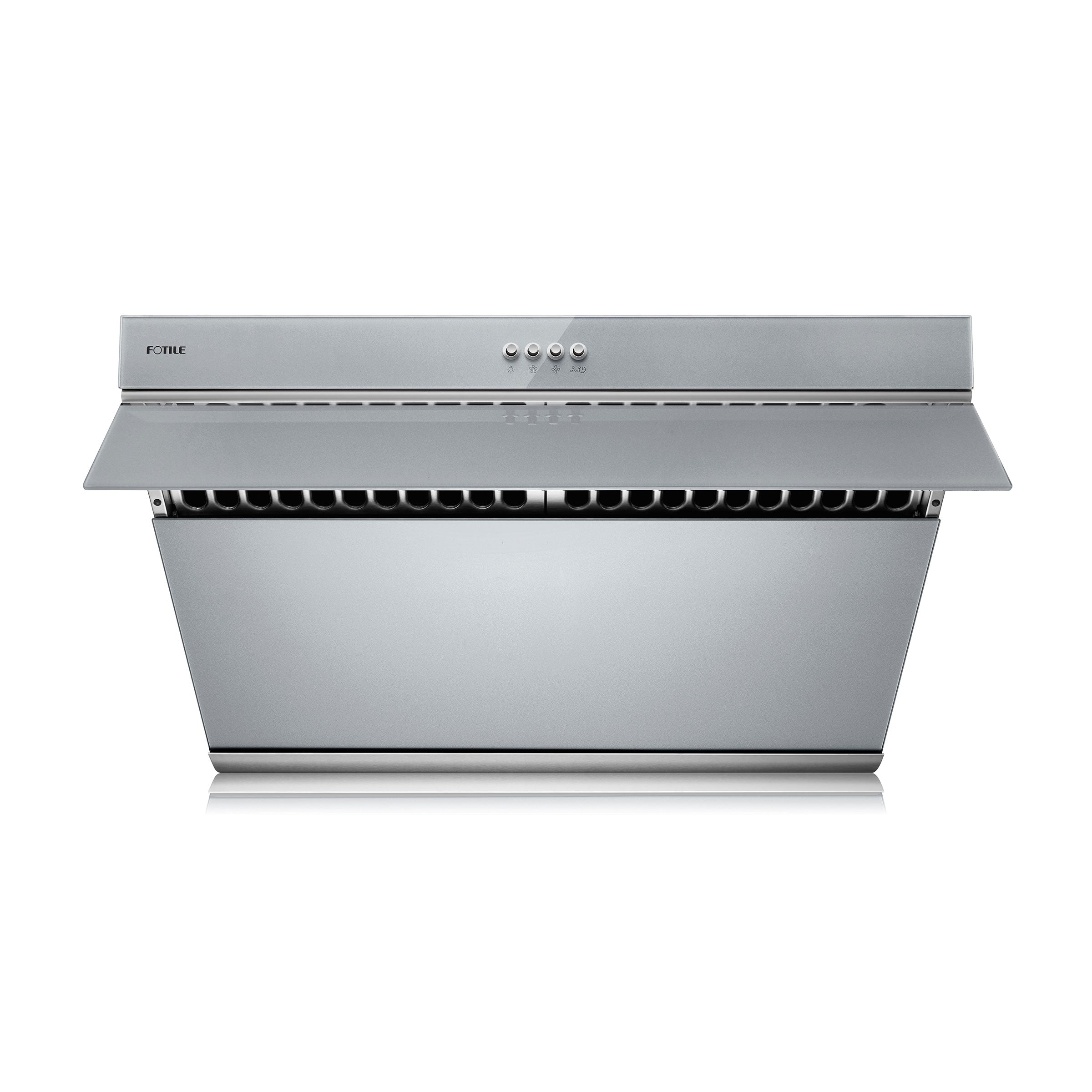

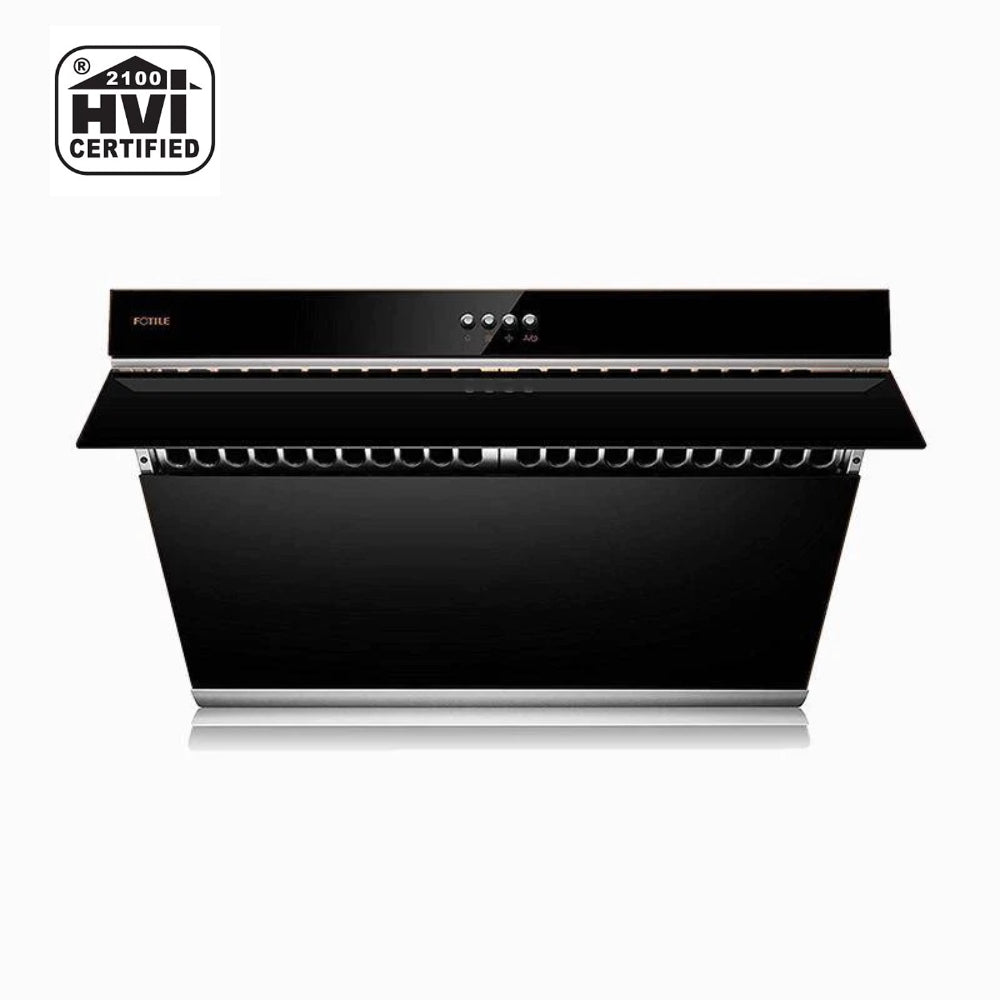

Fotile Slant Vent Series 30 in. 850 CFM Wall Mount Range Hood with Push Buttons | JQG7522

FOTILE Slant Vent Series, 30 In. Wall Mount Ducted Hood with Dual-Centrifuge Fan System, Capable of usually producing 530 CFMs, with the WhisPower motor Technology and Capture-Shield extraction, it can achieve a maximum power of 850 CFM and lowest noise level of 39dB. A 90-degree Open Fume Baffle Plate will open at a 90-degree angle, capturing smoke and fumes before they escape. A large six sf coverage area quickly covers all 4 / 5 burners on your cooktop, guiding smoke upwards and creating a barrier to prevent you from breathing in harmful smoke and grease. Mechanical buttons with Memory Functions keep your preference for air volume.

Features

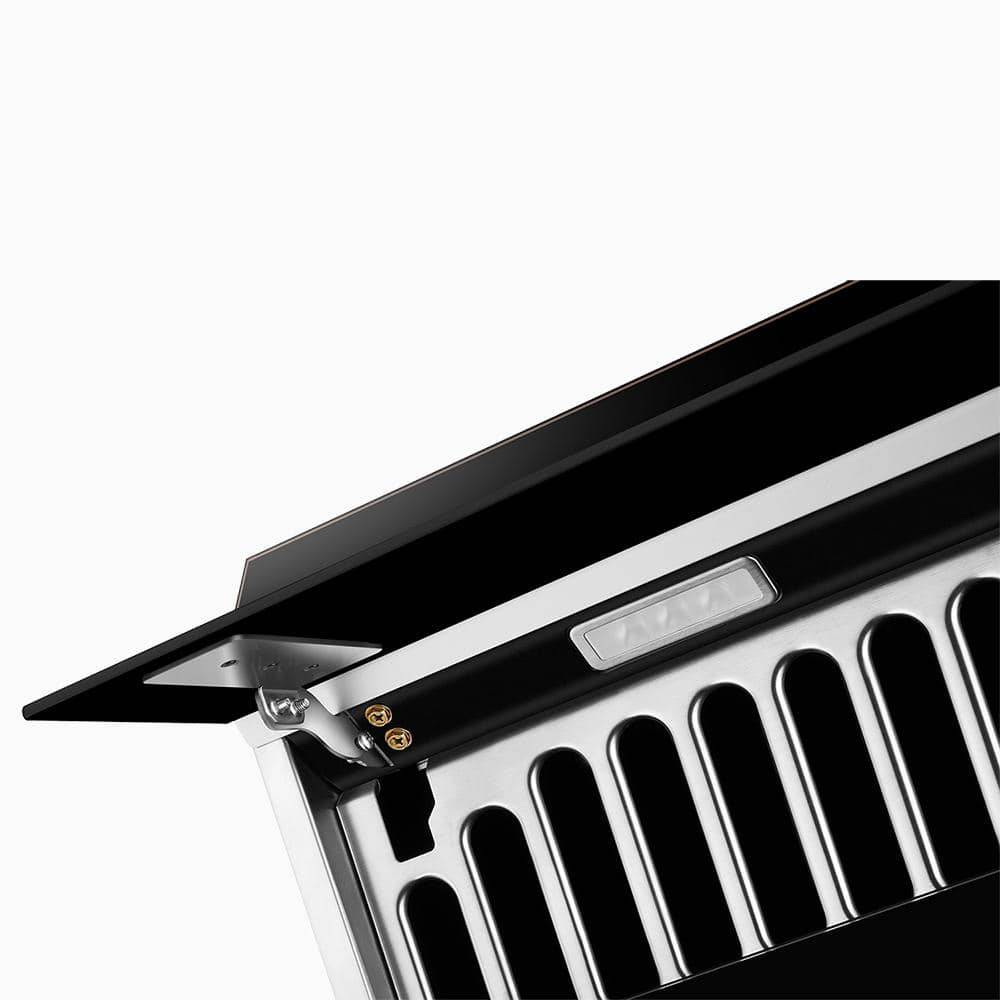

• Extra-wide suction. The 90-degree Automatic Open/Close Fume Baffle Plate prevents smoke from spreading in your kitchen and protects you against harm.
• Large Coverage Area. 30-inch Extra-wide Fume Inlet ensures even suction pressure at every angle, and six sq. Ft. Super-large Coverage Area quickly covers all the burners on your cooktop.
• Innovative Technology. Due to our WhisPower Technology, FOTILE can capture a higher CFM than published by achieving the Venturi effect created with our Capture Shield Technology. Airspeed and power increase as we capture smoke and grease in the Golden Collection Zone and pass it through our centrifugal WhisPower motors.
• Super Quiet Operation. The lowest speed has a 39dB noise level; Mid speed has 49dB; High speed has 54dB

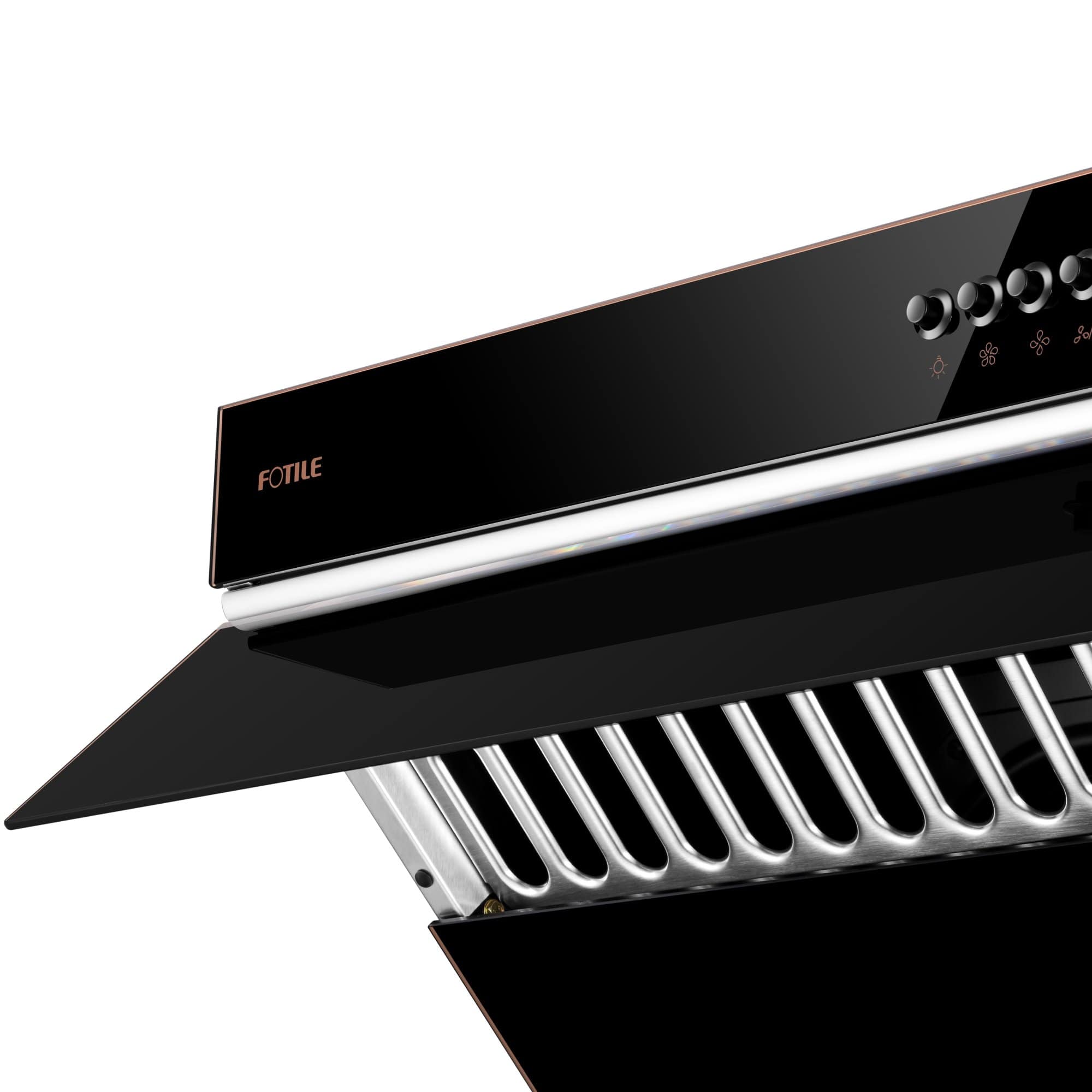

• Powerful Lights illuminate the whole cooking area and help you see the color of the food you are cooking.

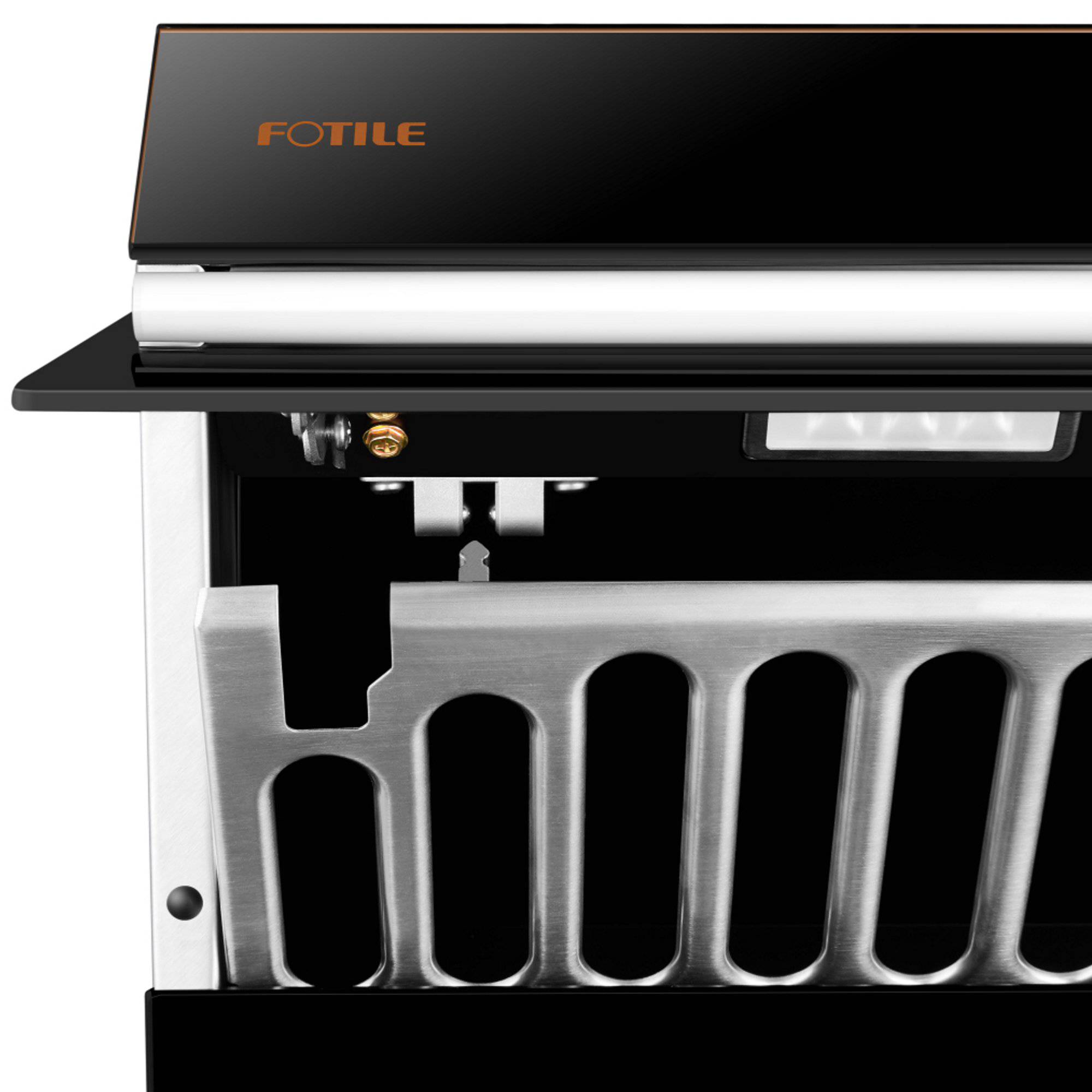

• Easy Clean. The large grease tray with more volume decreases the frequency of cleaning and folding the Oil Filter, and it is dishwasher safe.
• Fixed Open Fume Baffle Plate reduces waiting time and can be used when opened.

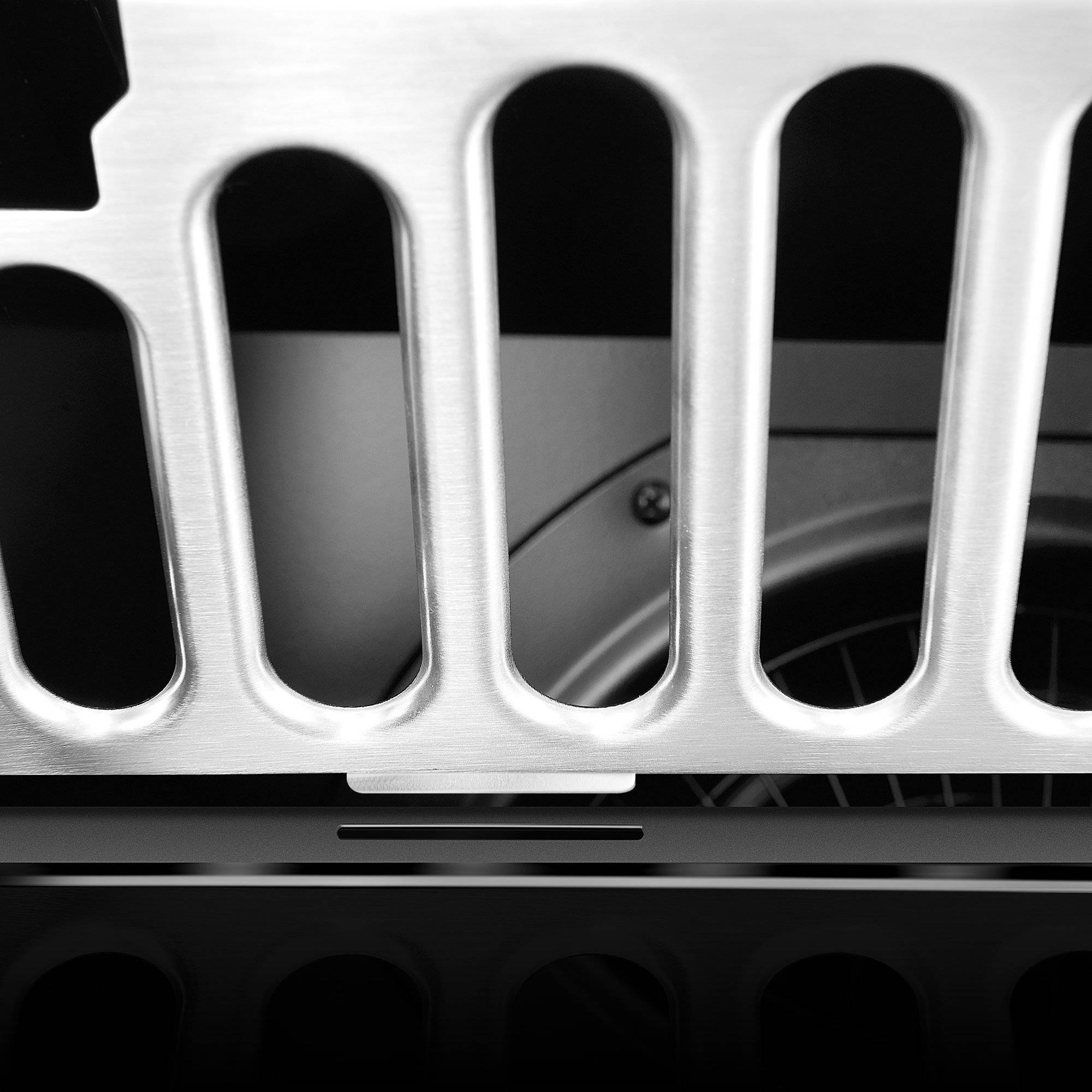

• Double Centrifugal Fans ensure strong power and fluent extraction.
• Memory Function keeps your preference for air volume.

Specifications

• Brand: Fotile
• Origin Country: China

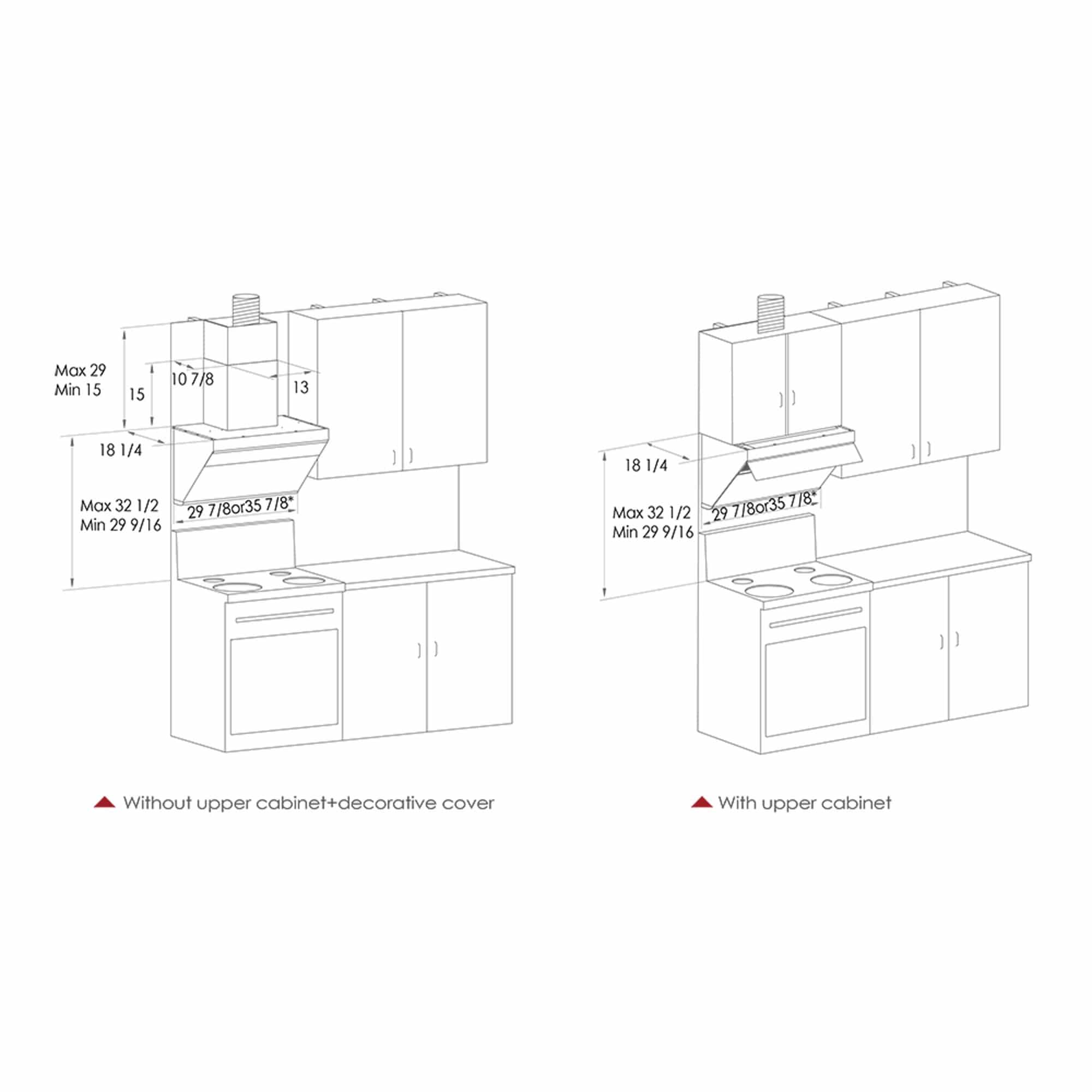

• Mount Type: Wall mount or under cabinet
• Airflow (Q/L/M/H): 380 / 650 / 850 CFM

• Noise Level:  39 / 49 / 54 Decibels

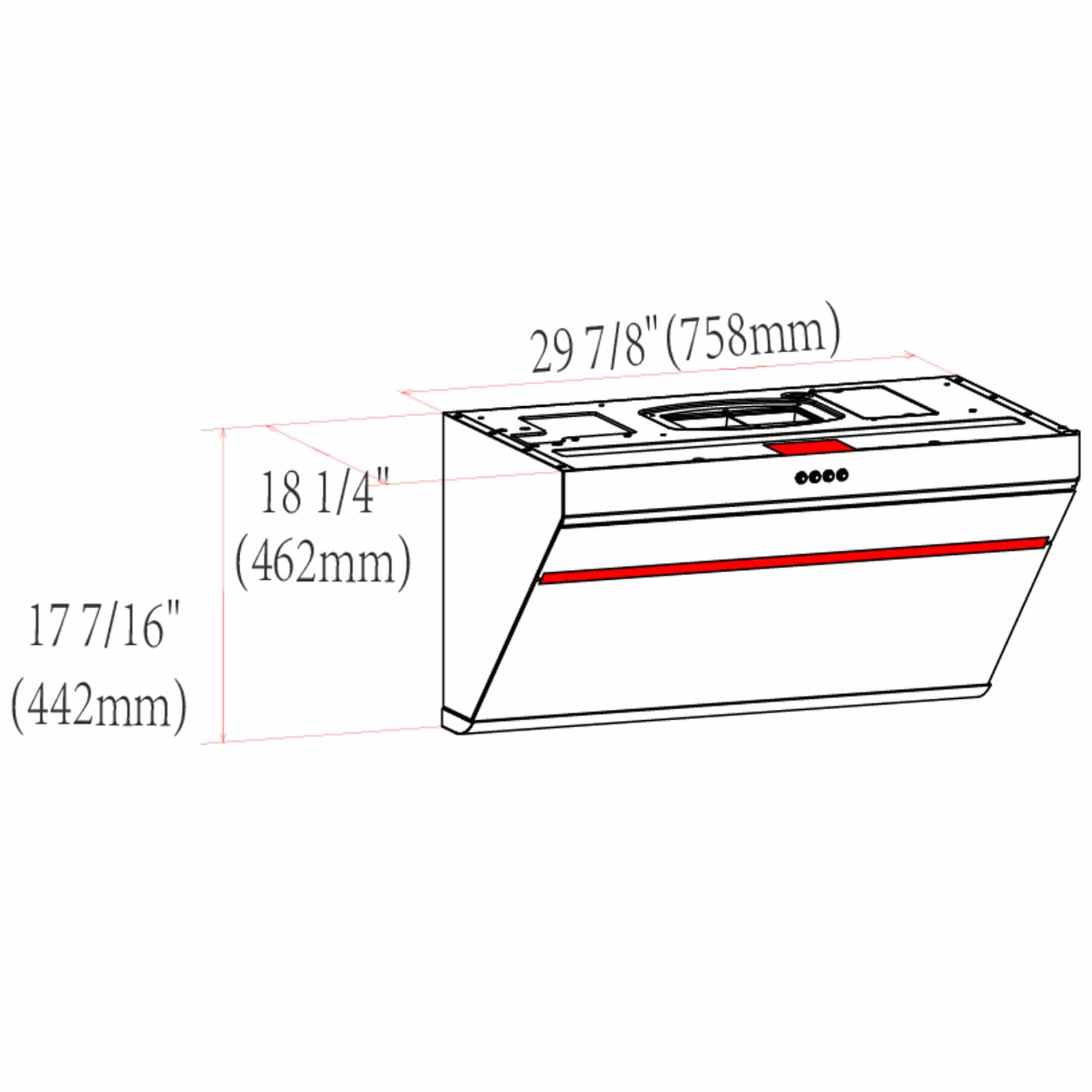

• Dimensions
  • Width: 29.9 in.
  • Depth: 18.3 in.
  • Height: 17.4 in.
• Power Rating: 120 V / 60 Hz
• Finish: Tempered Glass, Stainless Steel
• Lighting: 2 LED Lights

• Control Type: Touchscreen

• Speeds: 4 Speeds
• Duct Size: 6-inch round duct
• Motor Size: 850 CFM
• Warranty: Labor: 2 Years | Parts: 5 Years(Limited) | Motors: Lifetime Limited Warranty

Manuals

User Manual Brochure Spec Sheet

Manufacturer Warranty

**2-year full warranty**

This Warranty covers the Fotile Range Hood Product (the "Product") and each of its component parts (the "Parts") against defects in workmanship and materials.
This two-year full warranty will also cover the service and shipping fees for repairing or replacing Products or Parts.

**3-year limited warranty**

This Limited Warranty covers each component parts (the "Parts") of the Fotile Range Hood Product (the "Product") and is against defects in workmanship and materials only. The service and shipping fees for repair or replacement of the Parts will not be covered under this Limited Warranty.

**Lifetime motor limited warranty**

Fotile will repair or replace (at its sole discretion, either new or reconditioned motor part) the range hood motor if any defects in workmanship and materials arise in the range hood motor. However, the service and shipping fees for repair or replacement of the range hood motor part will not be covered after the Full Warranty period expires.

The warranty applies to the original owner and is non-transferable. To activate it, register your warranty within 90 days of delivery.

Warranty Policy Warranty Registration

Shipping-Return Policy

Shipping Times: 5-10 business days

FOTILE offers a 30-day return policy from the date of product delivery. All returns are subject to a 15% restocking fee ($50 minimum) plus shipping fees. Installed, damaged, used, and refurbished items are not eligible for returns.

Shipping Damage: If the product is damaged, take photos of the damage and keep it in its original packaging. Then, contact us at support@ovenelitehq.com with your photos, order number, receipt, and description of the damage.
